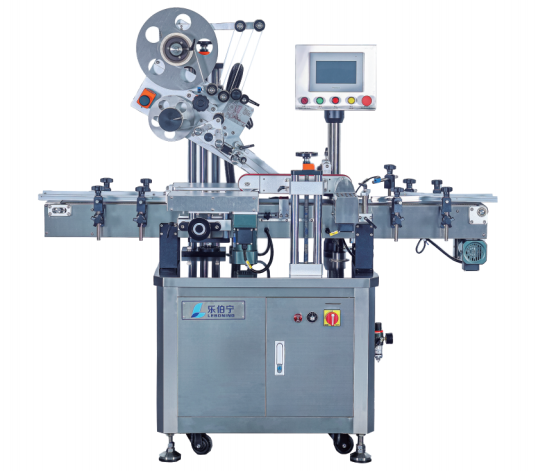

P-260贴标机(纸盒单面折角贴标机)






一、设备描述 Device description

●本设备专用于各种方盒的折角贴标使用。

rha squpmant it uied fer the tamtr lahe cf wrsu squie hose.

●贴标主机头何服贴标系统,贴标稳定、快速,并且有良好的贴标精度。

suiek the hast head strvo abeling stem,slet toszabte,faa,and have good abidlisg prtcisien.

●独特的分盒校正机构可根据产品规格任意设置分盒间距,便于贴标动作的顺利完成,提高贴标精庭。

The urue atb-bow oomectlen methartsn can set the spacng ot the bovwes arcoidng to the product

s中ttfesur so at tu faoitite thesnceth fnshing al thelabeing roremearn ind mgrese the sbeling acrunaey:

●触控式人机操作界面,出现异常可在人机界面上显示并引导故障排除,操作简单,任何人皆可快速使用本设备。有50组记忆功能(包括瓶子直径及贴标长康等参数),更换不同规格产品时无需重新设定,直接调用即可,大大提高工作效丰。

With the irdarface af touct and macsing irsarface,tha ahnarmaity can he dinplayad an tha man-machingintertoce and leads to rouhleshootinp The gperaten is umple,and anyore can use the dewce quickly.Thereare 50sels of menory furctiore jinc uding the diameler of the boue ang the lmgtn ot the stickerl,and thereplusament cf dfe em paatcatans athout thenesdeoraat tha dnss cal an,gratty mgrcaw wort shcare?.

●标签剥离距离由伺服电机、标签检测光电配合PLC自动演算,不需调整标签检测光电位置,任何标签长废在人机界面即可修改,使用方便。

Tha stiodntacengf thelshel n sutnnsicalypartermad by tha samn matnr andtha btel to datae tha phatoelketttcocndinate PiC No need to adnst thelstel boceltt the phece ecitie pootlin.Any taglength can be modhedn the man-mathne nbarate,ane t ia turwiman bo Le.

●无标、断标、漏标,无色带报警并自动停机,无盒不贴标。

Nc marts,no mis ks,no manks,no caks biand aiam ind a tcmauc oB.na bar witheut bbelieg.






二、技术参数 Technical Specifi cation



贴标机主要参数

不干胶标签参数

适应纸盒尺寸范围

长50-200mm、宽30-100mm、高15-100mm的纸盒

适应标签材质

透明标签、铜板纸及PE等

贴标速度

0-150盒/分

适应标签卷内径

Φ76mm

贴标精度

±1mm(包材误差除外)

最大标签卷外径

Φ300mm

破瓶率

<0.01%

适应标签尺寸范围

长度15-100mm、宽度15-60mm

贴标合格率

>99.99%

标签间距

2-4mm

电源

AC220V、50HZ/60HZ

标签上下边与底纸边缘间距

2mm

功率

2.5KW

标签底纸基本克重

>62g/m2

压缩空气耗气量

0.5Mpa,200L/min

底纸厚度

>55μm

总重量

300kg

底纸抗拉伸力

机器方向:16kg/25mm 横向:7kg/25mm

标准设备外形尺寸

1800*730*1615mm

底纸抗撕裂度

机器方向:25克/张 横向:31克/张



底纸透明度

52%
