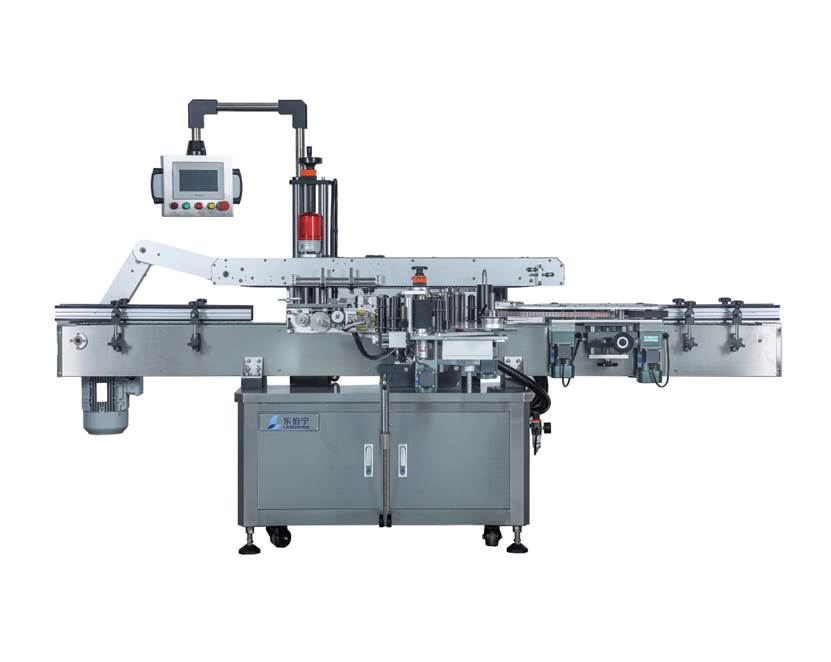

P-280贴标机(扁瓶、方瓶及异形瓶平面贴标机)


一、设备描述 Device description

●可贴方瓶的单面、双面及三面,扁瓶的单面、双面,圆瓶的单面、双面。使用范围广,适用性强。

Can stick the bottle of the single side double side and three sides.Bat battlas single side,double side,round batles single

side,doutle side.Using range es wide,wide applicability.

●使用弹簧缓冲上压机构,与输送带同步。保证瓶子压紧,且贴标时瓶子不倾斜。

Uaing the spring pressure an the buffer mechanism,and canveyer beit.Ensure the pressure,and iabeling bottles nas tilt

●使用进口知名品牌伺服电机,出标速度快、精度高及稳定性好。

Use mpartad wall-known brand sarvo motor,the speed,high pracision and goad stability.

●不同材质标签贴标不打皱不起泡。

Difterent material tag labeling not na bubblas to crinkle.

●万向调整机构调整角度范围大,适用于各种锥度瓶。

Universal wide Angle adjustment mechanism,applicable to all kinds of taper hottle.




二、设备特点 Contrivance Feature
















三、技术参数 Technical Specifi cation



贴标机主要参数

不干胶标签参数

适用瓶子直径

φ10-30mm

适应标签材质

透明标签、铜板纸及PE等

适用瓶型

西林瓶、滴眼液瓶及糖浆瓶等圆瓶

适应标签卷内径

Φ76mm

贴标速度

0-500瓶/分

最大标签卷外径

Φ400mm

贴标精度

±0.5mm(包材误差除外)

适应标签尺寸范围

长度15-150mm、宽度15-180mm

电源

AC220V、50HZ/60HZ

标签间距

2-4mm

功率

3.5KW

标签上下边与底纸边缘间距

2mm

压缩空气耗气量

0.5Mpa,300L/min

标签底纸基本克重

>62g/m2

总重量

400kg

底纸厚度

>55μm

标准设备外形尺寸

2716*1333*1650mm

底纸抗拉伸力

机器方向:16kg/25mm 横向:7kg/25mm



底纸抗撕裂度

机器方向:25克/张 横向:31克/张



底纸透明度

52%
