一、设备描述 Device description

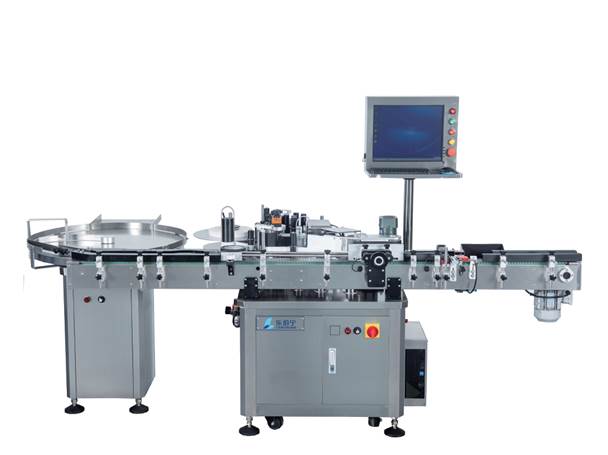

●适用于各种西林瓶、糖浆瓶等圆瓶的立式贴标使用,配置工业相机字符检测及漏贴检测剔除系统。
Applicable to all kinds of schering battles,bottle of syrup and other pround botles af verticallabeling.Equipped with
ndustrial camera ctharscter detectian and missing patch detectbion Cull the system.
●采用转盘供料方式,人工上料或连线使用均可。
Adopts rotary feeding method,artipcial feeding ar cannettian ta use.
●使用进口知名品牌伺服电机,出标速度快、精度高及稳定性好。
Useimported well-known brand servo motor,the spegd,high pree sion and good stability.
●使用橡胶轮差速分离机构,可无级调速,分离成任意间距,更换产品时无需更换规格件,也可选配螺杆分瓶机构。
Use rubter wheel differen tial separation mechanism.can be stepless speed reguletian,separated into any spacing.
change without changing the product specipcatians.
●轮附滚贴瓶身,标签粘贴牢固,调整快速方便。
Rollwheel attached to the bottle,Iabel stickup and prm,rapid and canvenient adjustment.
二、设备特点 Contrivance Feature
U形通道剔除倒瓶 特殊设计之U形通道剔除倒瓶,保证设备运行的连续性,提高生产效率 | 转盘式供料 平稳、顺畅且缓冲空间大 | 差速分瓶机构 使用橡胶轮分瓶,更换规格时无需更换规格件,只需调整间距,且分瓶间距通过改变速度能任意调整。 |

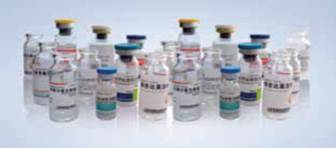

工业相机检测系统 | 漏贴检测及剔除系统 | 常用适用瓶型 |
三、技术参数 Technical Specifi cation
贴标机主要参数 | 不干胶标签参数 | ||
适用瓶子直径 | φ10-70mm | 适应标签材质 | 透明标签、铜板纸及PE等 |
适用瓶型 | 西林瓶、滴眼液瓶及糖浆瓶等圆瓶 | 适应标签卷内径 | Φ76mm |
贴标速度 | 0-400瓶/分 | 最大标签卷外径 | Φ400mm |
贴标精度 | ±1mm(包材误差除外) | 适应标签尺寸范围 | 长度15-200mm、宽度15-80mm |
贴标合格率 | >99.99% | 标签间距 | 2-4mm |
破瓶率 | <0.001% | 标签上下边与底纸边缘间距 | 2mm |
电源 | AC220V、50HZ/60HZ | 标签底纸基本克重 | >62g/m2 |
功率 | 3.5KW | 底纸厚度 | >55μm |
压缩空气耗气量 | 0.5Mpa,300L/min(配热烫印打印机) | 底纸抗拉伸力 | 机器方向:16kg/25mm 横向:7kg/25mm |
总重量 | 350kg | 底纸抗撕裂度 | 机器方向:25克/张 横向:31克/张 |
标准设备外形尺寸 | 2716*1333*1650mm | 底纸透明度 | 52% |
