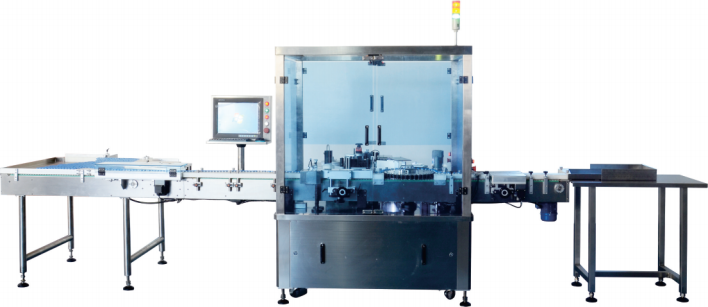

Y-700贴标机(立式回转式圆瓶贴标机)


一、设备描述 Device description

适用于各种西林瓶等圆瓶的立式贴标。

Suitable for all kinds of schering bottles such as vertical labeling of round bottles.

采用网带送料方式,人工上料或连线使用均可。

Adopts a mesh balt conveying method,artipcial feeding or connection to use.

使用进口知名品牌伺服电机,出标速度快、精度高及稳定性好。

Use imported well-known brand servo motor,the speed,high precision and good stability.

高速海绵轮附滚贴机构,缓冲性好且耐磨。

High-speed sponge wheel rolling stick prm,good buffer and wear-resisting.

回转式星盘定位机构,定位精准,贴标精度高,贴标精度±0.5mm。

Rotary disk positioning,positioning accuracy,labeling of high precision,labeling accuracy*/-0.5 mm.

贴标速度快,φ30mm以内西林瓶可达700瓶/分钟。

Labeling speed,q schering bottles within 30 mm up to 700 bottles/minute.

二、设备特点 Contrivance Feature


回转式星盘机构

定位精准、输送平稳。


螺杆分瓶机构

采用螺杆分瓶机构、分瓶均匀、进入

星盘机构顺畅、不破瓶


网带供料机构

供料速度最快可达1000瓶/分,供料平稳,不倒瓶、无噪音,缓冲空间大


喷印、干燥系统


喷印、干燥系统


常用适用瓶型


三、技术参数 Technical Specifi cation

贴标机主要参数

不干胶标签参数

适用瓶子直径

φ16-42.5mm

适应标签材质

透明标签、铜板纸及PE等

适用瓶型

西林瓶、糖浆瓶及塑料圆瓶

适应标签卷内径

Φ76mm

贴标速度

0-700瓶/分

最大标签卷外径

Φ400mm

贴标精度

±0.5mm(包材误差除外)

适应标签尺寸范围

长度15-120mm、宽度15-80mm

贴标合格率

>99.99%

标签间距

2-4mm

破瓶率

<0.001%

标签上下边与底纸边缘间距

2mm

电源

AC220V、50HZ/60HZ

标签底纸基本克重

>62g/m2

功率

5KW

底纸厚度

>55μm

压缩空气耗气量

0.5Mpa,500L/min

底纸抗拉伸力

机器方向:16kg/25mm 横向:7kg/25mm

总重量

500kg

底纸抗撕裂度

机器方向:25克/张 横向:31克/张

标准设备外形尺寸

3508*1873*2109mm

底纸透明度

52%
