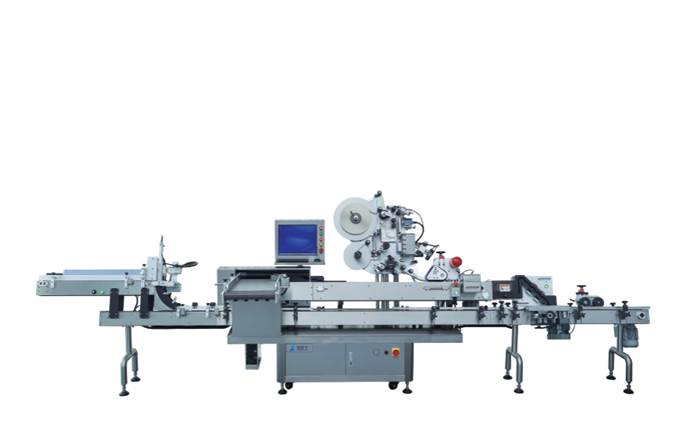

Y-510贴标入托一体机(分托、卧式贴标及入托功能一体机)


一、设备描述 Device description

●分托机构专用于实现整叠塑料托盒的自动分托动作,具有分托速度快、分托后托盒不重叠、无吸双托现象、对托盒无损伤等优点。

Points supporting institutions decicated to reaize the whole fold plastic box,automatic points support action,have speed is quick,points after Joe don't overlap,no absorption double phenomenon,for carton no damage,etc.

●专用于各种小圆瓶的卧式贴标及入托使用。

Dedicated to all sorts of small round bottles of horizontal labeling and care use.

●水平进料,上料省力,操作方便,且破瓶率低(口服液瓶小于二十万分之一)。

Horizontal feeding,material saving,convenient operation,and to break the bottle rate is low (less than one over two hundred thousand of oral liquid bottles).

●使用进口知名品牌伺服电机,出标速度快、精度高及稳定性好。

Use imported well-known brand servo motor,the speed,high precision and good stability.

●贴标速度快、精度高,贴标精度±0.5mm。

Labeling speed,high precision,labeling accuracy+/-0.5 mm.

●采用独特设计的S型轨道缓冲,结构简单合理,缓冲性能好。

1)瓶子经S型轨道自由落体,无挤压,不破瓶。

2)瓶子间相互摩擦小,不刮伤标签及标签上的打印内容。

Adopts the unique design of s-shaped orbital buffer,simple and reasonable structure,good buffer performance.

1)the bottle by the S orbital free fall,extrusion,not broken bottles.

2)mutual friction between the small bottle,no scratch label and the print content on the label.

●定位模块化规格件,更换快速方便。

Locate a modular specifications,change quickly and easily.

●托盒经多道护栏校正进入夹托机构,保证托盒输送的平稳及入托的稳定。

box of correction of multichannel guardrail into clamp mechanism.guarantee the smooth of the support box of transportation and the stability of the kindergarten.

●设备可使用的规格范围广,1ml-20ml的安瓿瓶在一台设备上实现更换。

Of the specifications of the equipment can be used widely,1 ml -20 ml ampoules on one device to achieve change.



、设备特点 Contrivance Feature




水平进料

与其他厂家垂直进料机构相比,更安全方便,破瓶率也大幅降低为二十万分之一,比其他厂家小十倍以上,配有缺瓶检测装置,瓶子少于一定量时可自动减速,上料后可自动加速,并大大降低人工劳动强度


高速出标机构

采用三段式设计,出标速度快且不断标

螺杆分瓶

采用螺杆分瓶机构并与输送带机械同步,使容器舒畅地进入输送带,不倒瓶、不破瓶



高速轮附机构


S型入托轨道


常用适用瓶型和托盒





三、技术参数 Technical Specifi cation



贴标机主要参数

不干胶标签参数

分托及入托机构主要参数

适用瓶子直径

φ10-24mm 或φ16-30mm

适应标签材质

透明标签、铜板纸及PE等

适用瓶子直径

φ10-24mm 或φ16-30mm

适用瓶型

安瓿瓶、口服液瓶及西林瓶等小圆瓶

适应标签卷内径

Φ76mm

适用瓶型

安瓿瓶、口服液瓶及西林瓶等小圆瓶

贴标速度

0-500瓶/分

最大标签卷外径

Φ400mm

贴标速度

0-500瓶/分

贴标精度

±0.5mm(包材误差除外)

适应标签尺寸范围

长度15-90mm、宽度15-80mm

贴标精度

±0.5mm(包材误差除外)

电源

AC220V、50HZ/60HZ

标签间距

2-4mm

电源

AC220V,50HZ/60HZ

功率

3.5KW

标签上下边与底纸边缘间距

2mm

功率

3.5KW

压缩空气耗气量

0.5Mpa,300L/min

标签底纸基本克重

>62g/m2

压缩空气耗气量

0.5Mpa,300L   /min

总重量

400kg

底纸厚度

>55μm

总重量

400KG

标准设备外形尺寸

5336*1710*1686mm

底纸抗拉伸力

机器方向:16kg/25mm 横向:7kg/25mm

适应标签卷内径

φ76mm



底纸抗撕裂度

机器方向:25克/张 横向:31克/张

最大标签卷外径

φ400mm



底纸透明度

52%

标准设备外形尺寸

5336*1710*1686mm
